POUPULA Y5-48 boiler centrifugal induced draft fan

POUPULA Y5-48 boiler centrifugal induced draft fan

It is designed to fit the equipment of 1-20t/h industries boiler and civil boiler of which equipped with the dust-removal fixture.Before installation , the fan must equip with the dust-removal fixture whose dust removing efficiency shall not beneath 85% . The temperature of air must be below 250℃ Our company can provide the stainless steel heat boiler centrifugal blower , when the temperature of air must exceed 250℃.

POUPULA Y9-38D boiler centrifugal induced draft fan steam boiler induced draft

It is designed to fit the equipmentof 0.5-35t industries boiler which equipped with preheated and dust-removal fixture , suitable for the industrial boiler with the similar suction condition and the compatible performance . But the temperature of air must be below 250℃. Before installation . the fan must equip with the dust-removal fixture whose dust removing efficiency shall not beneath 85% .With access 1o lower the amount of dust in the flue gas,the far will reduce environmental pollution .Moreover , it can reduce wear so as to enhance the service life of the fan.

POUPULA Y5-47 induced draft fan, temperature resistant and heat-resistant centrifugal fan

Product Introduction:Type Y5-47 boiler centrifugal fan is designed for 0.2-20t/h industrial/domestic boilers firedwith coal and equipped with a smoke and dust removal device. Y5-47 has three types ofTransmission structures: TYPEA, C, and D. The dust content of the conveying gas shouldbe < L50mg /m3. And the temperature of the imported flue gas should be > 165°C and <250°C. lf >250°C， stainless steel high-temperature boiler fan is the better choice.By the way, Y5-47 is equipped with Type A Reloadable Motor. The type of generaventilation motors are made according to an E   class standard and the type of High-temperature motor is made of high-temperature-resistant materials. For heat dissipation, acooling wind wheel is added to the lengthened shaft between the impeller and the motorhousing, which can effectively block the heat transmitted by the impeller, The structure ofY5-47is simple for maintenance.

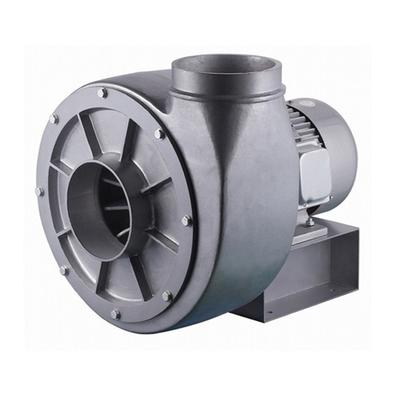

POUPULA HBJS aluminum alloy centrifugal ventilation fan pipeline fan

HBJS series are the professional fans designed for carton machine to feed paper andclean dust . The semi-open impeller is casting from 10 forward curved blades and one boss , and the whole fans are featured by high pressure , smooth pressure curve , Wear -resistant , anti-explosion , not producing sparks . The enterprises use the products to exhaust dust and transport mixed gases including fiber , cashmere , woody debris , dust and etc , with the temperature no higher than 80 ℃.
